722.6 Transmission Pan upgrade guide

Guide to the 722.6 Transmission Pan Upgrade

722.6 Transmission Pan upgrade guide
722.6 Transmission Pan Upgrade kit

1. What’s Included with the VRP 722.6 Transmission Pan Upgrade

  • A custo gasket specifically for the 722.6 transmission.
  • Mounting bolts for secure installation.
  • A magnetic drain plug for capturing metallic debris.
  • A button screw for attaching the shield.
  • Clear, step-by-step instructions for installation.

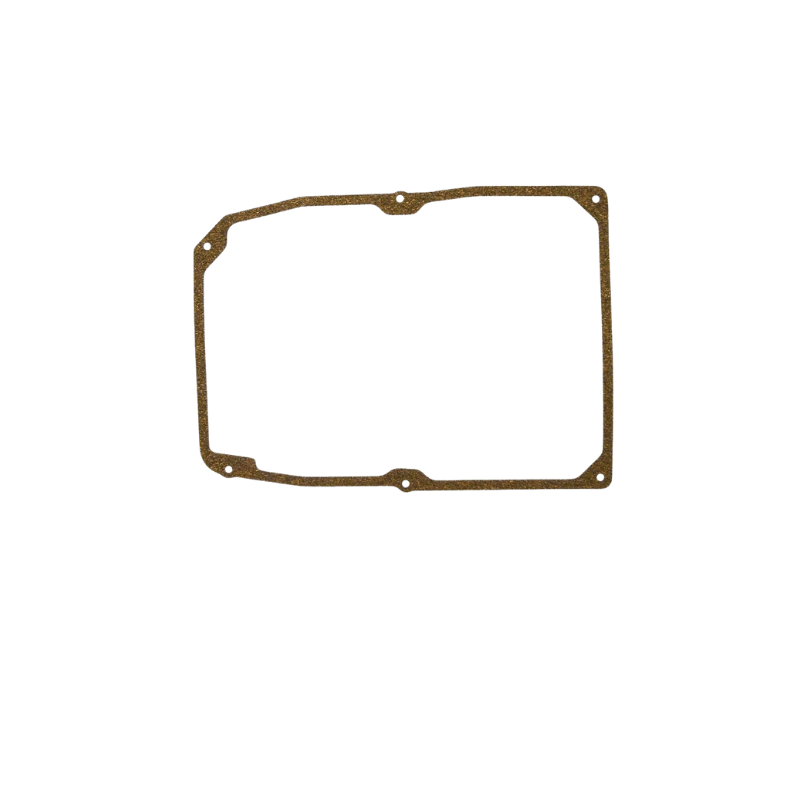

VRP Custom Gasket

  • 722.6 Transmission Pans: The custom gasket is specifically engineered for VRP NAG1/722.6 pans and is incompatible with stock pans or gaskets.
  • Optimal Fit and Performance: While RTV may be used as a substitute, the pan is designed to function best with the provided gasket.
  • What’s Included: Each VRP transmission pan comes with one gasket.

Dipstick and Transmission Fluid Level

  • Fluid Levels: The VRP 722.6 pan maintains the same fluid level as the stock pan. Correct fluid level is typically temperature-dependent.
  • Dipstick Stop Ledge: A square ledge inside the pan ensures dipstick accuracy, even with the larger pan design.
  • Vehicles Without Dipsticks: Some vehicles display “See Dealer” on the fluid cap. Proper tools and adherence to factory instructions are required for fluid replacement.

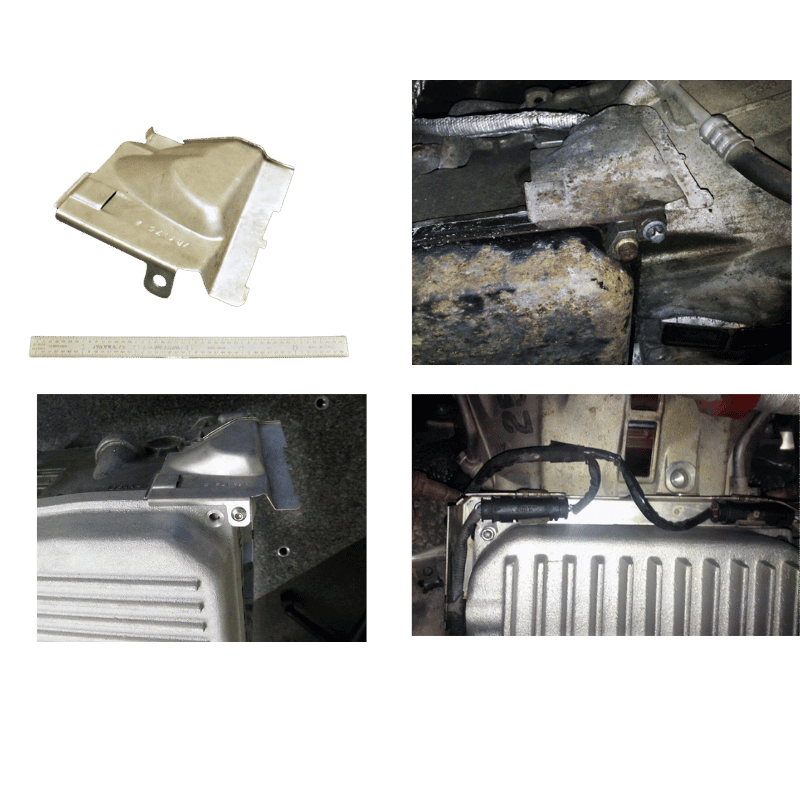

Shield Mounting on Passenger’s Side

  • Built-in Shield Tab: Pans produced after March 2016 include a tab for the shield to bolt onto at the passenger front corner.
  • For Older Pans: You may need to fabricate a connector or adjust the shield to fit.

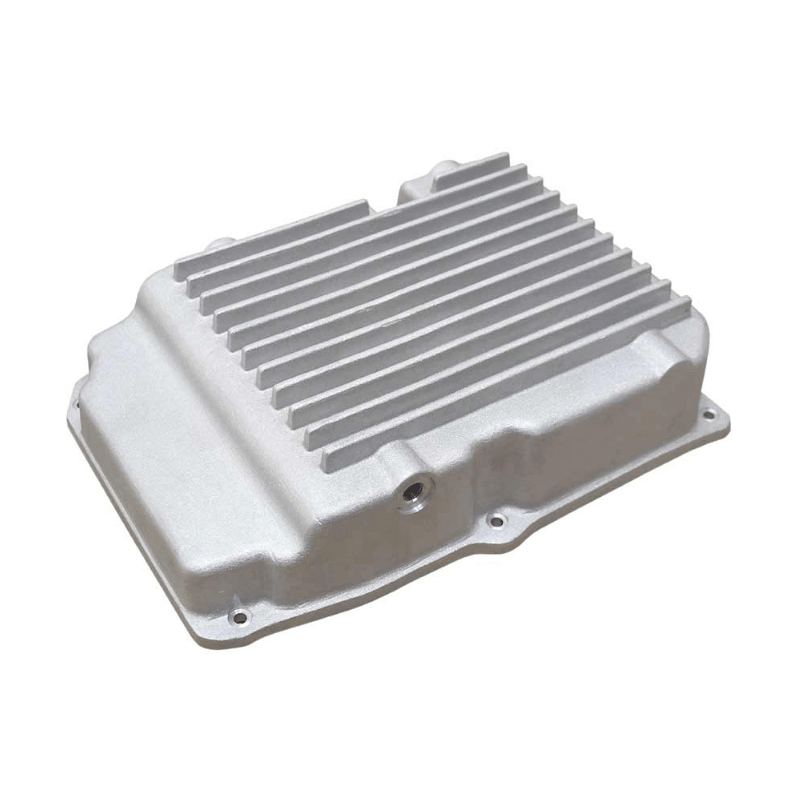

Drain Location

  • Convenient and Safe Placement: The magnetic drain plug is positioned on the driver’s side near the rear of the vehicle, ensuring easy access and added safety compared to a bottom drain.

Optional Machining for Temperature Sending Unit

  • Customization Options: VRP can drill and tap a 1/8 NPT hole for a temperature-sending unit, suitable for aftermarket temperature gauges.
  • Available Locations:
    • Driver/left side.
    • Passenger/right side, toward the front.
    • Passenger/right side, toward the rear.
  • Order Customization: Select this option before checkout. A plug for the hole is included, but verify the thread specifications of your gauge before ordering.

VRP Transmission Pan Compared to Stock

The VRP 722.6 Transmission Pan Upgrade offers a complete, well-engineered solution with optimal gasket design, compatibility with stock filters, and thoughtful features like dipstick ledges and customizable options. For additional details or questions, contact VRP customer support.
